The Axiom

By Ole Scheeren © Buro-OS

The Axiom is an emblem of the innovation that is now synonymous with Shanghai and forms an elegant urban landmark as the gateway to Yangpu District.
TYPE
Mixed-Use, High-rise
STATUS
Commission: 2017; Construction Start: 2020 (West Tower); Completion: 2024 (West Tower).
CLIENT
Tishman Speyer
LOCATION
Shanghai, China
SITE
At intersection of Songhu Road and Zhayin Road, gateway location to Jiangwan New Town, Yangpu, Shanghai
SCALE
West Tower GFA: 108,400 m2
HEIGHT
West Tower: 280 meters. East Tower: 250 meters
PROGRAM
West Tower: Premium Offices, Retail

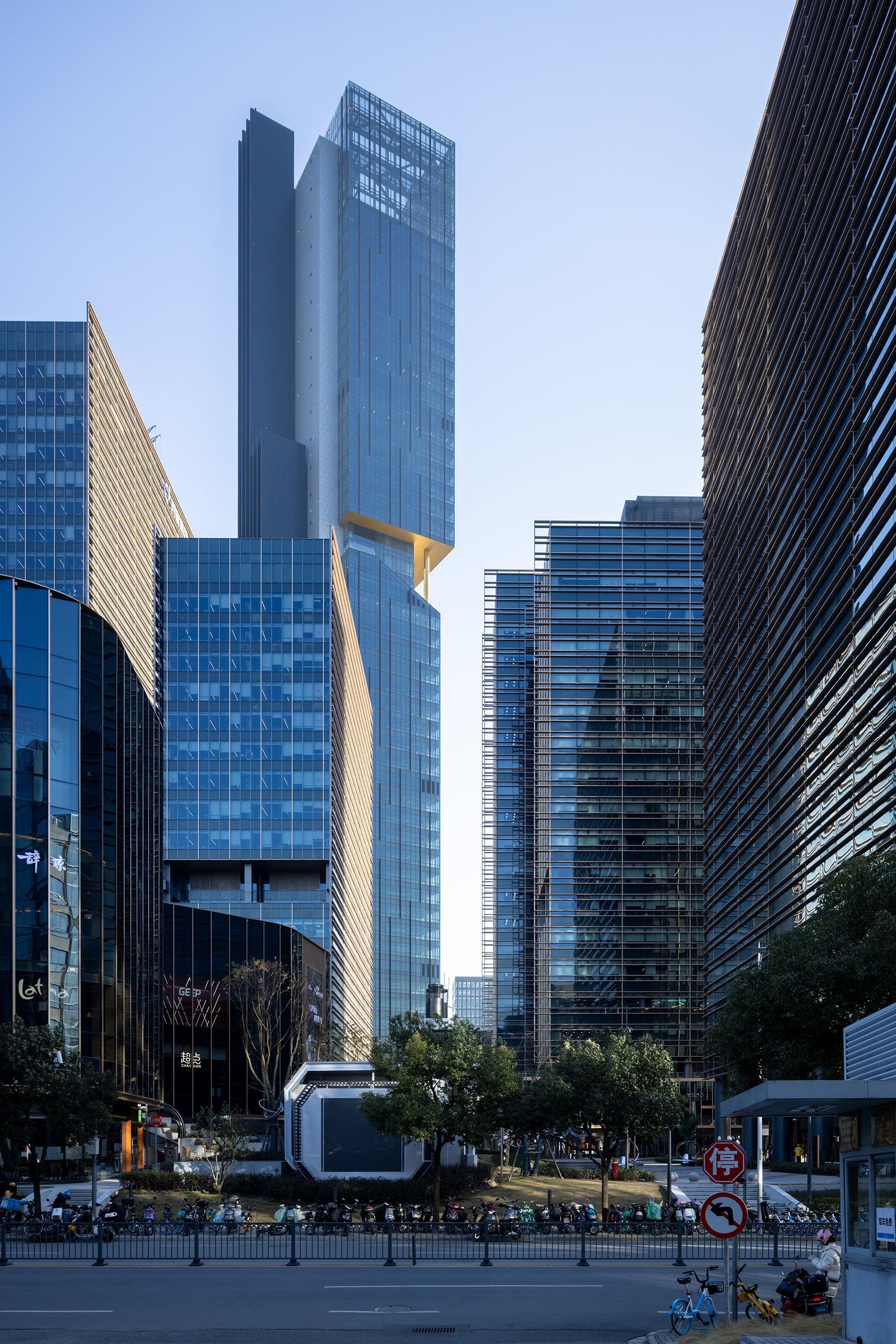

Büro Ole Scheeren’s The Axiom breaks away from the archetype of corporate towers with a twist on minimalism and functionalism. Rising to 280 meters across 49 storeys, it is the first of two skyscrapers that will form the centrepiece of The Springs, the largest Chinese development by Tishman Speyer – an American real estate giant globally known for owning projects such as the Chrysler Building and Rockefeller Center in New York. The second of the twin towers is currently in construction and will reach 250 meters tall upon completion.

The Axiom sits at the heart of the Yangpu District in the northeast of Shanghai, one of the city’s fastest-growing future-oriented centres and home to two of China’s most distinguished universities. The district’s young and dynamic talent has attracted renowned multinational brands including Nike, ByteDance and Bilibili to open their regional headquarters in The Springs. The landmark skyscrapers have been designed to meet the growing demand for flexible high-quality workspace in the flourishing district, providing over 2 million sq ft of offices, hotel, retail, and cultural facilities, including a theatre that stretches across the two towers.

Ole Scheeren’s design presents the next generation of corporate skyscrapers with a minimalist, functional aesthetic heralded by Mies van der Rohe’s Seagram building in New York. With China being home to more skyscrapers than any other country in the world, The Axiom presents a contemporary update to the archetype of the corporate skyscraper.

New typology developed to host flexibility

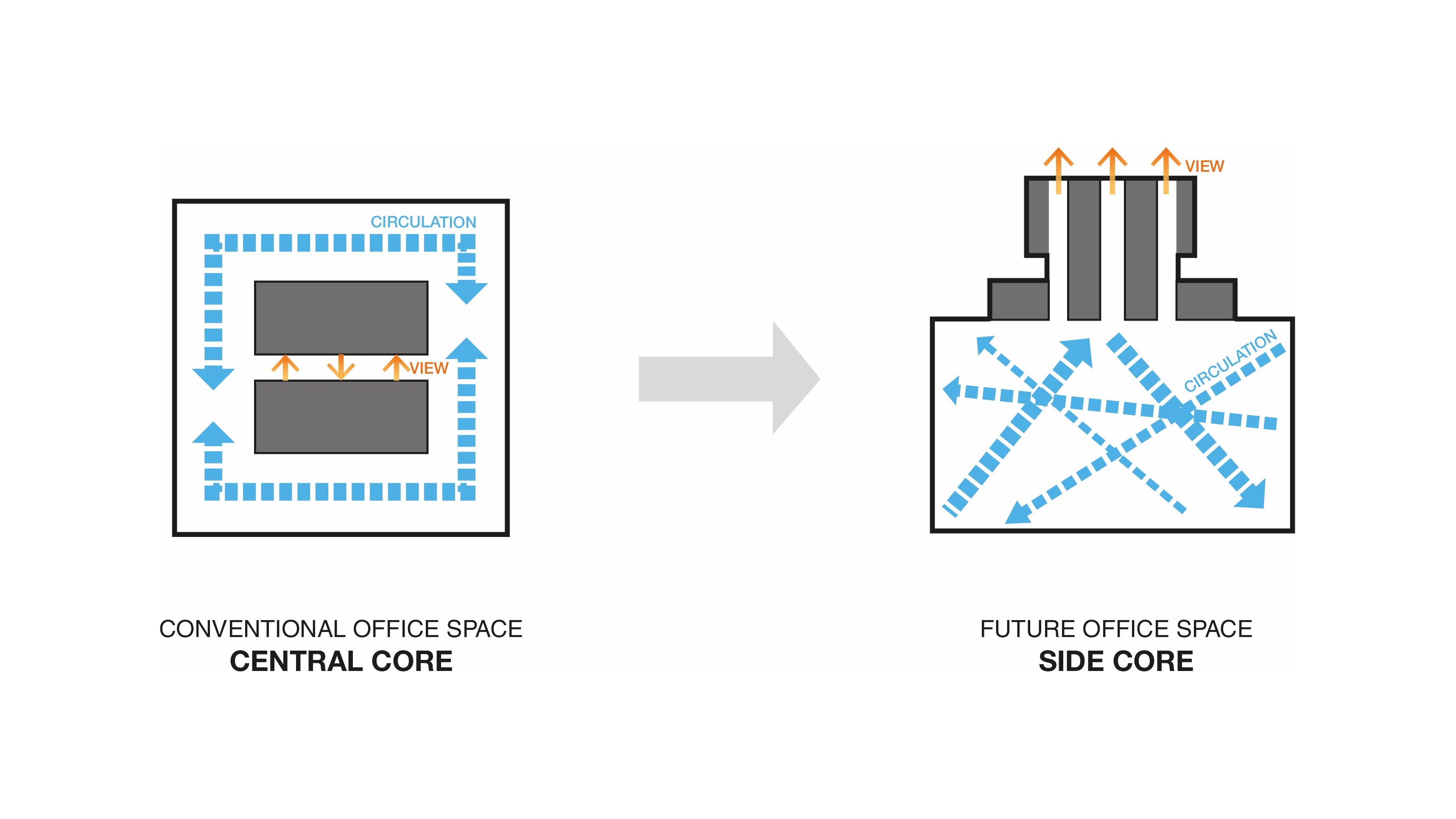

Taking it further, The Axiom employs an offset core as opposed to the ubiquitous central-core typology, with the services and elevators protruding out of the façade. This frees the interior floor plates of mechanical and structural obstructions resulting in large, efficient and adaptable workspaces that can cater to both growing and established organisations. An offset core design is especially unique in buildings over 250 meters, making up just 3% of the world’s 500 tallest buildings. Liberated from columns and building services, such as elevators and trash chutes, the floors can be easily configured, accommodating future business expansion, collaboration and changing business needs. The design embraces the dynamic entrepreneurial spirit of Shanghai and the contemporary working environment.

Future workspace complemented by Sky Terraces and Roof Oasis
Central to Ole Scheeren’s design of the towers are carved volumetric openings that form the sculptural Sky Terraces. These mid-tower spaces accommodate collaborative zones acting as social catalysts for The Springs development and visually anchor the workspace. The terraces align with the heights of the nearby buildings, providing the skyscrapers with a harmonious proportion and playful rhythm. The tower’s elegance is further enhanced by vertical bronze fins that also provide seamless lighting and ventilation for the interior spaces.

The fluctuating width of the Sky Terraces, lined with gold edges, frames the panoramic views of Shanghai. The apertures look out to the city whilst also creating a dramatic mid-point where the city can look back into the tower. Opposed to the muted shafts of corporate skyscrapers, the openings – alongside the illuminated elevators that visibly ascend and descend the building – offer glimpses into the activity, collaboration and creativity inside the tower and the city at large.

The Sky Terrace is complemented by the Roof Oasis crowning the tower. The space offers outdoor gardens with lush plant life and flowing water features for the occupants of the tower that speak to the rich nature of the local district and nearby wetland eco-park.

The Cultural Gate: A mixed-use podium embedded in the city
The Axiom embeds itself in the city with the Cultural Gate, a mixed-use podium which will connect the twin towers at its southern tips. The podium houses informal workspaces, public roof terraces and cafes, creating a sense of life and vitality that spreads throughout its surroundings. The Cultural Gate guides visitors into the centre of The Springs and towards a multi-form theatre for cultural events and activities, further dissolving the boundaries between the corporate function and public realm.

The Axiom stands as a new urban landmark of The Springs development. Designed as a leading destination workplace of the future, The Axiom is set to contribute significantly to one of Shanghai’s foremost business and innovation districts.

PROJECT CREDITS
DESIGN TEAM
DESIGN ARCHITECT: Büro Ole Scheeren
PRINCIPAL / DESIGN: Ole Scheeren
PARTNERS: Dan Cheong
ASSOCIATE / PROJECT DIRECTOR: Can Liu, Jing Chen
TEAM: Rafal Boguszewski, Peiwen Deng, Nicolas Madariaga Frez, Marcel Holmberg, Claudia Hertrich, Kseniia Kapitonova, Zhiyin Lu, Tarak Mehta, Dan Narita, William Shi, Yiwen Xing, Lydia Zhou. With: Syihan Amir, Zhuoxing Bai, Clementine Bory, Yifei Cai, Yuzhen Chen, Ler Chen, Rui Huang, Jonathan Kan, Evelyn Liang, Fai Lam, Lidiia Lukianova, Shanil Riyaz, Praveen Ramachandran, Jale Sari, Emma Shen, Angie Su, Albert Tsai, Jose Urbiola, Vicky Wang, Lisa Wu, Haipeng Wang, Yumeng Wu, Peng Wang, Kurin Wang, Hualin Yang, Huiru Yang, Yueming Zhao, Bruno Zhao, Xinying Zhang, Brian Zhang, Josh Zhao
CONCEPT TEAM: Rafal Boguszewski, Peiwen Deng, Claudia Hertrich, Marcel Holmberg, Dan Narita, Yiwen Xing, Lydia Zhou. With: Lidiia Lukianova, Praveen Ramachandran, Emma Shen, Angie Su, Albert Tsai, Kurin Wang, Huiru Yang

CONSULTANTS
LOCAL DESIGN INSTITUTE: AECOM, Shanghai (West Tower); Tongji Architectural Design (East Tower), Shanghai
STRUCTURAL ENGINEER: AECOM, Shanghai (West Tower); Tongji Architecture Design (East Tower), Shanghai
FAÇADE CONSULTANTS: Inhabit Engineering Consultation, Shanghai
ELECTRICAL ENGINEER: AECOM, Shanghai (F1D); Eco Face(F1E), Shanghai
INTERIOR DESIGN: Hassell, Hongkong/ Shanghai (Office and Retail); Cheng Chung Design, Shenzhen (Hotel)
LIGHTING CONSULTANT: Brandston Partnership, Shanghai
SUSTAINABILITY CONSULTANT: Sallvis, Shanghai; China Academy of Building Research, Shanghai
LANDSCAPE DESIGN: WES Landscape Architect, Shanghai
RETAIL CONSULTANT: REALIN, Shanghai
WIND ENGINEER: RWDI, Shanghai
FIRE ENGINEER: JENSEN HUGHES, Shanghai
KITCHEN CONSULTANT: NOD Kitchen Planner, Hongkong
SIGNAGE DESIGN: Lianghao Design, Beijing
PHOTOGRAPHY: Iwan Baan, Xiaobin Lv
